CHEMLINK

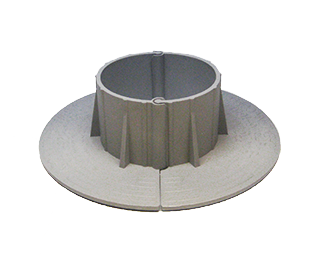

E-Curb 3 Inch Round

E-Curb 3 Inch Round from Chemlink are suitable for up to 1″ OD Pipes.

SKU F1333

• Highly versatile
• Quick and easy to assemble
• Perfect for retrofitting around existing pipes.
• Designed for use on all types of flat & low sloped roofs
• Sealing penetrations around solar panel mounts, HVAC, Electrical, and any type of structural supports.
• TPO Primer is required for use with TPO.
• Made from Molded plastic
• Made in U.S.A

IN THE BOX

• One (1) Mini E-Curb Rounds 3″

E-CURB™ PENETRATION SEAL COMPONENTS

INSTALLATION

Bonding surfaces should be clean, dry and free from all contamination that may inhibit the sealant’s performance. Remove all previously applied caulk, mastic, cement, asphalt, and other contaminants from penetrations with a wire brush. Brush away all gravel or loose granules. Isopropyl alcohol is an effective cleaner for surface preparation. Please contact customer service for application guidelines with temperatures below 32°F (0°C). Do not use on TPO without the use of TPO primer. Do not use on Hypalon. Smooth APP membranes require a granulated target. This product sets rapidly upon exposure to moisture. Please refer to data sheet for step-by-step installation guidelines.
